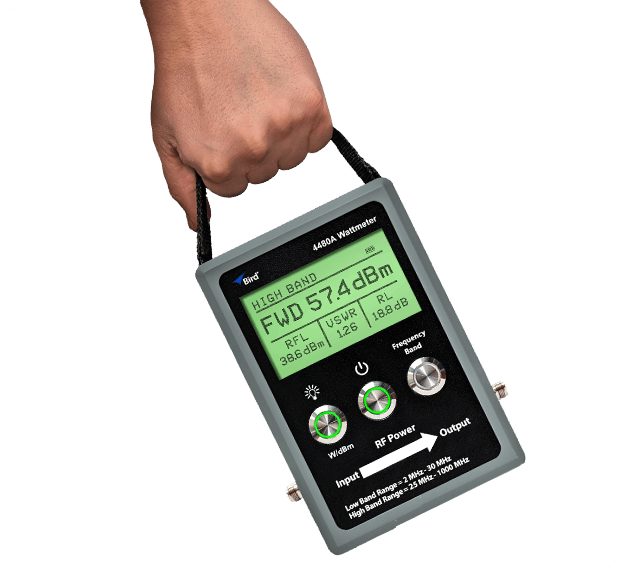

Bird 4480A RF Wattmeter

Model: 4480A (replaces 4410A)

Bird 4480A RF Wattmeter

The Bird 4480A Power Meter offers element-free, precise RF power measurements for CW and digitally modulated signals. It is designed for ease of use, delivering reliable performance across a wide range of applications from 2 MHz to 1000 MHz.

New in-line power measuring equipment intended for measuring incident and reflective power levels in watts across two frequency bands. The element-free design streamlines field operations by reducing maintenance needs and enhancing reliability, allowing personnel to focus on mission-critical tasks without the complexity of managing interchangeable elements.

Purpose: Ensuring radio readiness.
Connection: Inline RF power measurements between the transmitter output (RF source) and the load or antenna.

Specifications

  • Element-free operation — no frequency-specific elements to swap
  • Frequency range: 2 MHz to 30 MHz (low band), 25 MHz to 1000 MHz (high band)
  • Power handling: 10 W to 10 kW (low band), 1 W to 1 kW (high band)
  • Accuracy: ±4% of reading
  • Measures forward power, reflected power, VSWR and return loss
  • Readout in Watts or dBm, switchable
  • Directivity: approximately 30 dB
  • 240 x 128 pixel backlit LCD display
  • QC Series quick-change Type N connectors
  • Powered by six rechargeable AA NiMH batteries, 8 to 10 hour runtime
